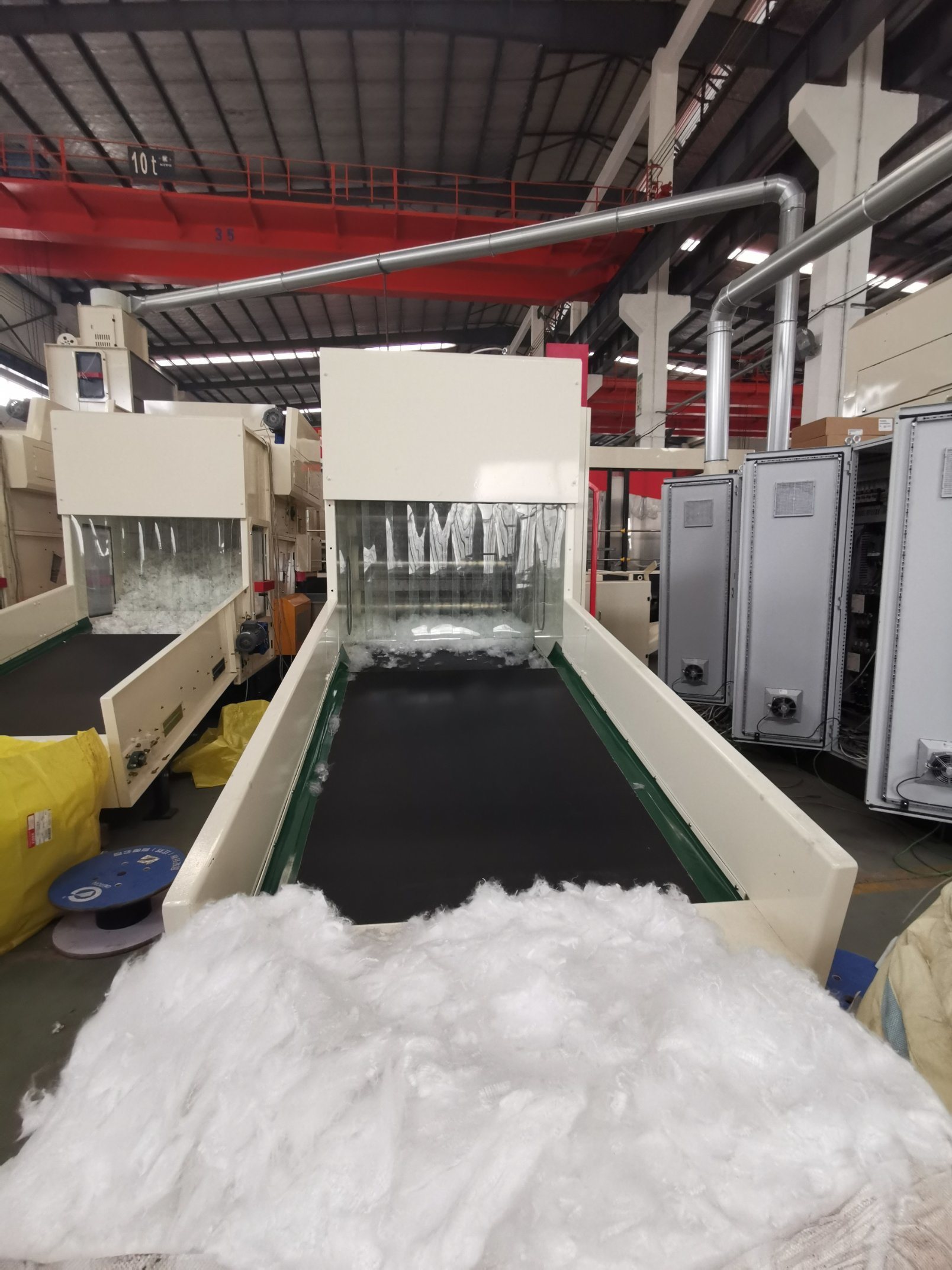

BALE OPENER

■Scope of application

To pre-open all kinds of fiber from bales then weighing pre-determined percentages as required for a total blend. Weighing is by electronic scale and transfer of material is by cross conveyer to the opener.

Key words:

Product series:

OPENING AND BLENDING

Product Description
Production Line process
Operation Video
Application

- Commodity name: BALE OPENER
- Commodity ID: 1323339218859741184
To pre-open all kinds of fiber from bales then weighing pre-determined percentages as required for a total blend. Weighing is by electronic scale and transfer of material is by cross conveyer to the opener.

Function

To pre-open all kinds of fiber from bales then weighing pre-determined percentages as required for a total blend. Weighing is by electronic scale and transfer of material is by cross conveyer to the opener.

Main specification

Machine width: 1100mm 1600mm

Production capacity: ≤300kg/h ≤500kg/h

Weigh pan capacity: 0.2-2.5 kg 0.3-3.5kg

Installed power: 5.95kw

Drop frequency: 2-4times/min

Characteristics

● Weigh by required proportion

● Electronic weighing accuracy ±3%

● Control of the spiked lattice and fiber leveling roller by separate inverter

● Lengthened feeding apron and load-bearing apron are available which is stronger than the normal design
