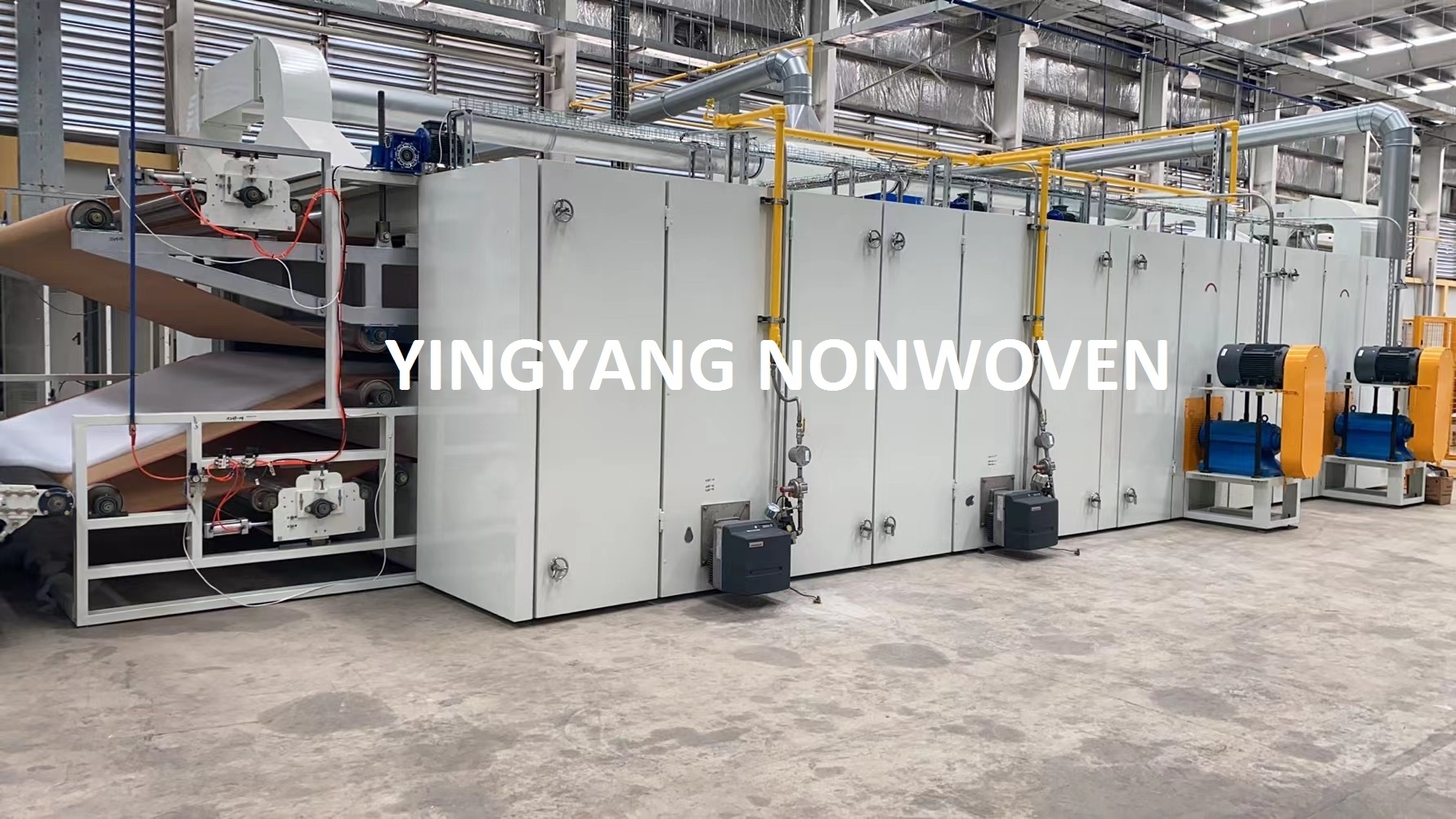

SOFT/STIFF THERMAL BONDED WADDING OVEN

■Scope of application

This machine is used to thermal bond web or semi-finished nonwovens contained low melt fiber by hot air penetration to achieve certain thickness and hardness.

Key words:

Product series:

DRYING & HEAT SETTING

Product Description
Production Line process
Operation Video
Application

- Commodity name: SOFT/STIFF THERMAL BONDED WADDING OVEN
- Commodity ID: 1323339280704753664
This machine is used to thermal bond web or semi-finished nonwovens contained low melt fiber by hot air penetration to achieve certain thickness and hardness.

Function

This machine is used to thermal bond web or semi-finished nonwovens contained low melt fiber by hot air penetration to

achieve certain thickness and hardness.

Main Specification

Working width: ≤5000mm

Heating Chamber Length: 6m, 8m, 10m double belt

Heat setting temperature: ≤220℃

Working speed: weight≤1000gsm ≤20m/min

Weight≥1000gsm ≤6m/min

Heating circulation method: top-blowing and bottom-suction, bottom-blowing and top-suction penetration in turn

Heating source: Electricity heating, gas burner heating, diesel oil burner heating

Installed capacity: 62.4KW（Electricity heating power according to oven width and length）

Characteristics

● Top-blowing and bottom-suction, bottom-blowing and top-suction alternately to evenly thermal bond through the wadding and ensure uniform surface.

● Burners are directly connected to the suction fan by stainless steel pipe to improve the mixing effect of the heated air.

● Upper air channel uses Teflon soft connections to achieve excellent sealing during hot air circulation.

● Unique design for thermal insulation layer so as to achieve the best insulating result, reducing heat loss
Key words:
- thermal bonded oven
- nonwoven oven
Structure: single belt thermal-bonding oven, double-belt thermal-bonding oven
Heating source: hot oil circulation, gas burner heating, diesel oil burner heating, electricity heating
Installed power: 17.2KW(Electricity heating power according to oven width and length)
